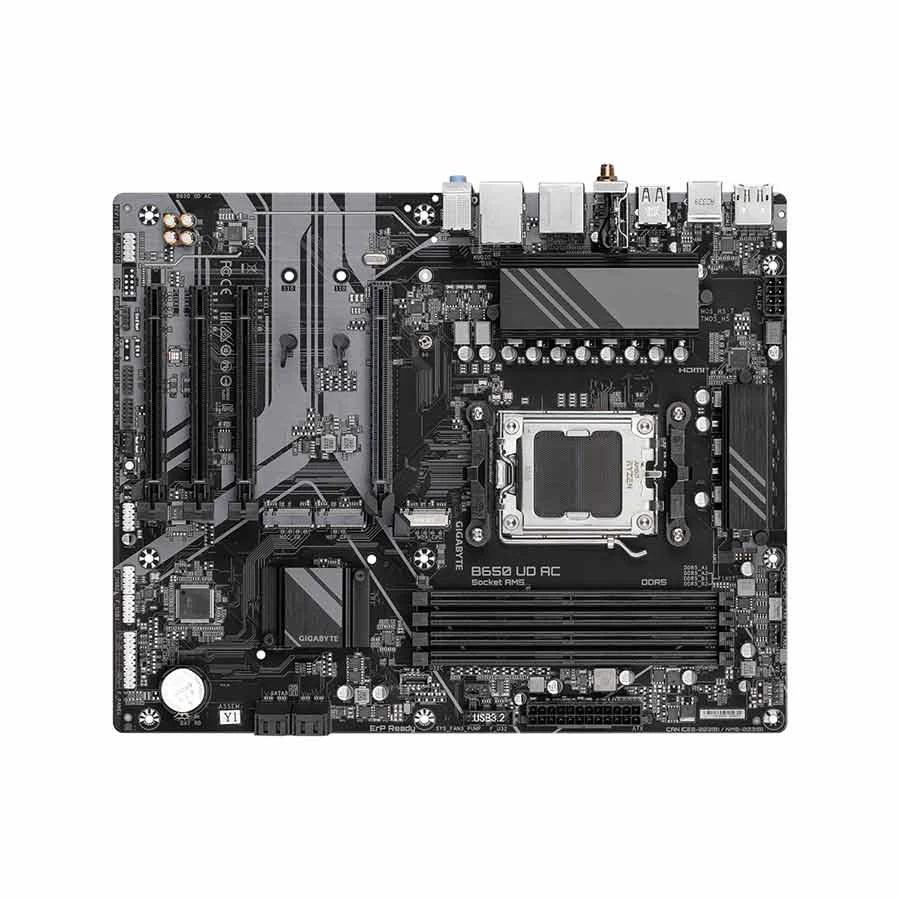

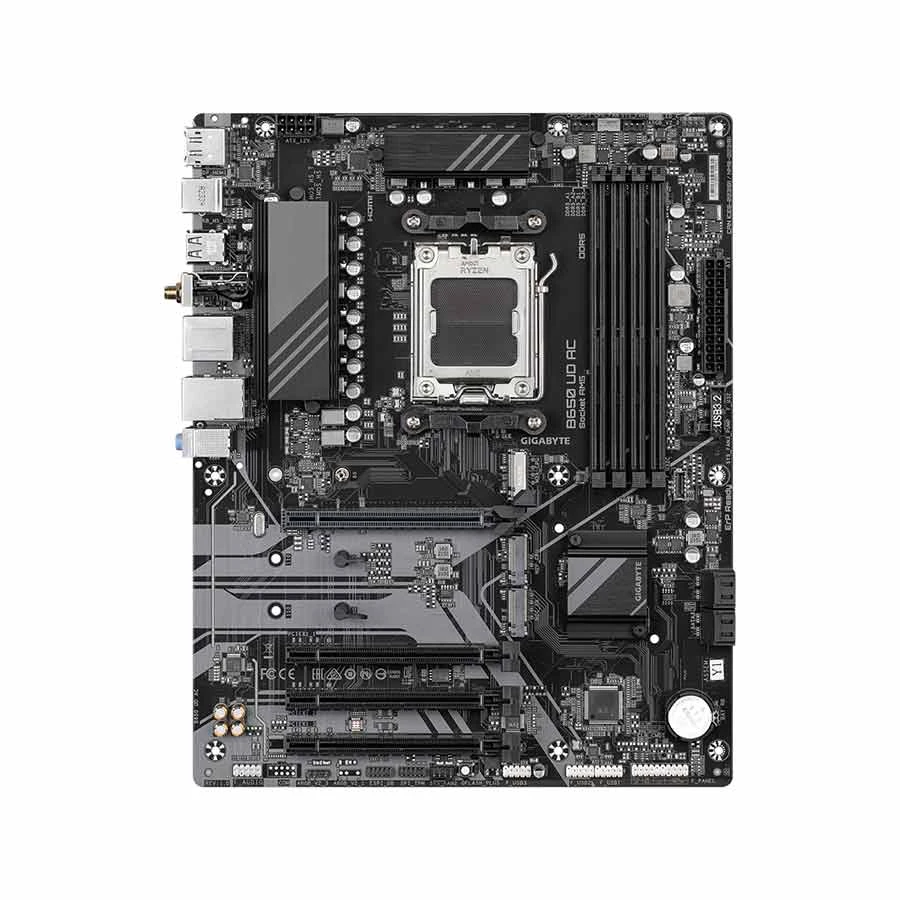

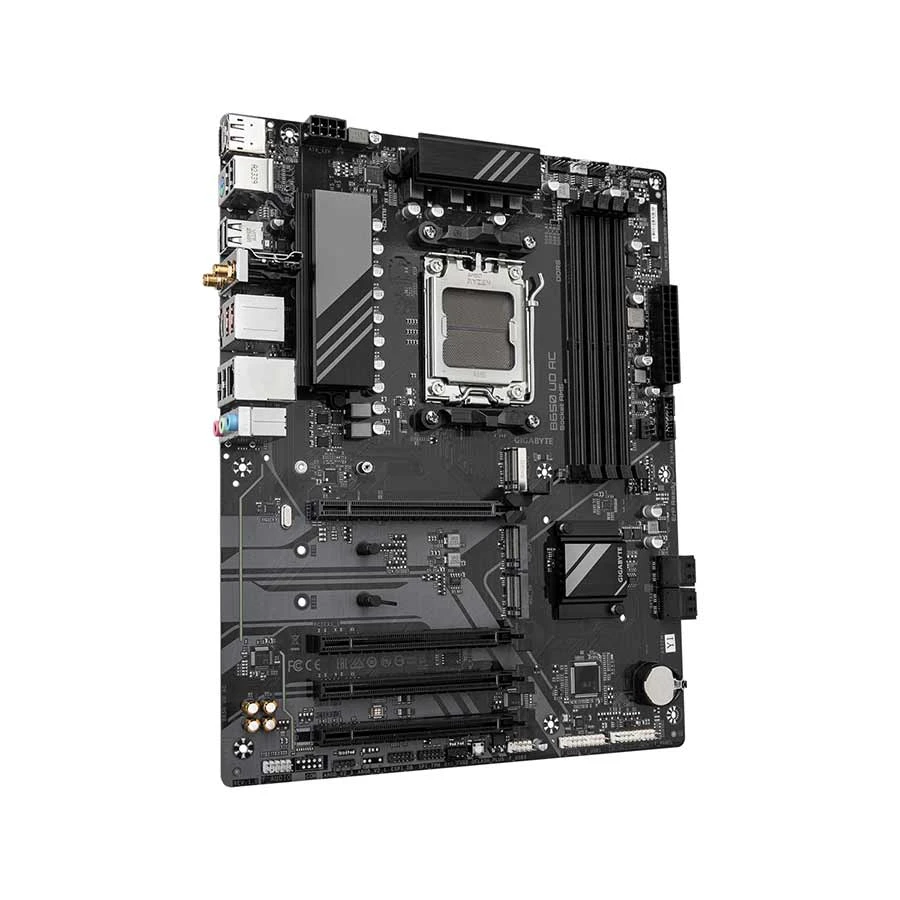

GIGABYTE B650 UD AC AM5 ATX Motherboard
Original price was: 28,050৳ .24,600৳ Current price is: 24,600৳ .
Key Features
- Model: B650 UD AC
- Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
- Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- Graphics Output: 2 x DisplayPort, 1 x HDMI port
- Features: 1 x DisplayPort, 1 x HDMI
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |

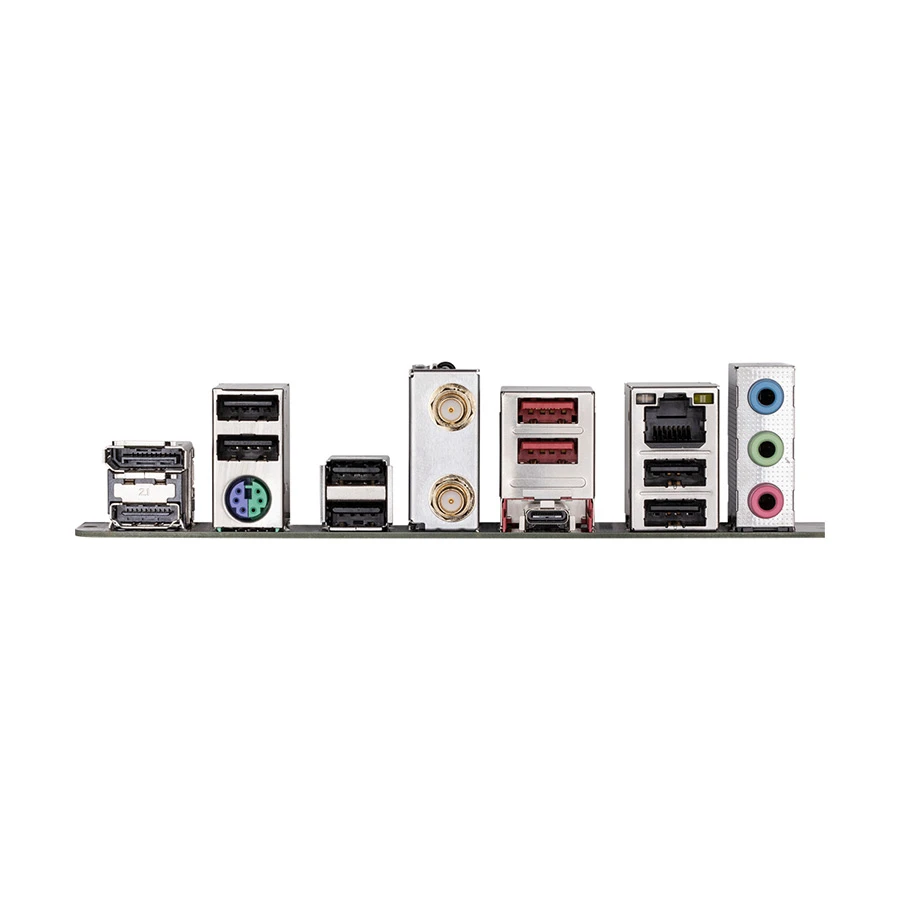

| USB (s) | CPU: – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) – WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.0 – Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
